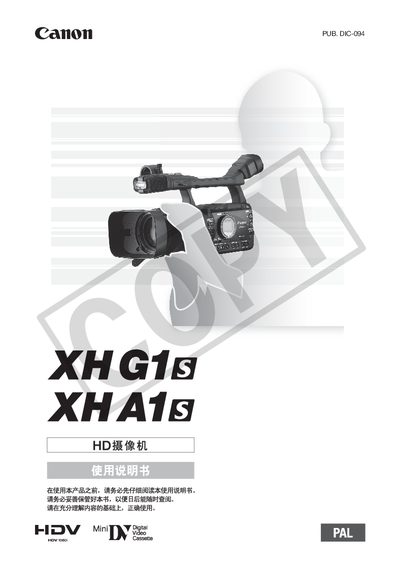

This is a Canon camera instruction manual, which mainly introduces the characteristics of the camera, including 20x zoom, 3CCD system, DIGIC DV II image processor and so on.
This manual provides detailed instructions for operating the Canon XH G1S / XH A1S camcorder, including safety precautions, setup of power and accessories, and step‑by‑step guidance for recording video and audio. It also covers menu navigation, custom settings, external connections, and troubleshooting procedures.
The document includes a parts guide, specifications table, and a comprehensive index, helping users quickly find information on functions such as zoom, focus, exposure modes, and video output options.
| Operating temperature | 0 – 40 °C |
|---|---|
| Dimensions (W × H × D) | 163 × 192 × 394 mm |
| Weight | 2,200 g |
| Battery capacity | 5,200 mAh |
| Battery voltage | 7.4 V |
| Power input | 100 – 240 V AC, 50/60 Hz |
| Power consumption (viewfinder) | 7.4 W |
| Power consumption (LCD) | 7.6 W |
| HD/SD‑SDI video output voltage | 0.8 V p‑p / 75 Ω |
The CA‑920 small power adapter must be used, and the CV‑250F DV cable is required to meet the EMC Directive requirements.
The camcorder supports SD, SDHC, and MultiMedia (MMC) cards.
