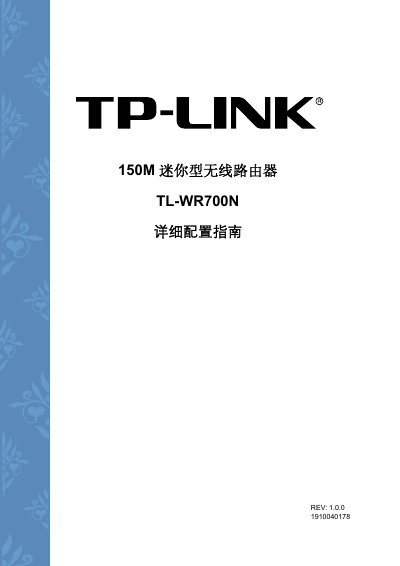

This document is a configuration guide for the 150M Mini Wireless Router TL-WR700N. It includes hardware description, quick installation guide, AP mode configuration guide, and Router mode configuration guide.
This guide covers all aspects of the TL‑WR700N router, including hardware layout, installation environment, and detailed configuration steps for each operating mode (AP, Router, Repeater, Bridge, and Client). It also includes quick‑start procedures, system tools, and a comprehensive FAQ to help users resolve common issues.
The appendix lists the full technical specifications, such as supported standards, frequency range, data rates, and physical dimensions, giving users a clear reference for the router’s capabilities and requirements. This manual is written in Chinese.
| LAN/WAN port | 10/100M auto‑negotiation |
|---|---|
| Frequency range | 2.4 – 2.4835 GHz |
| Maximum data rate (11n) | 150 Mbps |
| Number of channels | 13 |
| Antenna count | 1 |
| Dimensions (L×W×H) | 81 mm × 71 mm × 28 mm |
| Operating temperature | 0 °C to 40 °C |
Open the Network Connection Details page; the “Physical address” shown is the MAC address in the format XX‑XX‑XX‑XX‑XX‑XX.
