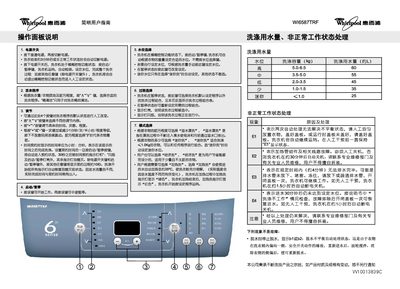

This manual describes the control panel functions, how to select wash programs, adjust water levels, and use special modes such as overflow rinse and extra‑rinse. It also provides step‑by‑step installation instructions, including connecting water and drain hoses.
Technical specifications are listed, covering power ratings, capacity, dimensions and water pressure requirements, and a troubleshooting section identifies common error codes and recommended actions. This manual is written in Chinese.
| Rated Frequency | 50 Hz |
|---|---|
| Rated Input Power | 1350 W |
| Rated Wash Motor Power | 430 W |
| Maximum Load Capacity | 6.5 kg |
| Weight | 35 kg |
| Dimensions (W×D×H) | 547 × 559 × 936 mm |
| Water Supply Pressure | 0.02‑0.78 MPa |
The machine automatically selects the water level based on load, but you can set it manually according to the amount of laundry.
Error code E1 indicates an imbalance; redistribute the laundry evenly and restart the cycle.
Select the desired program using the control panel knobs and press the start button.
The washing machine measures 547 mm wide, 559 mm deep and 936 mm high.
