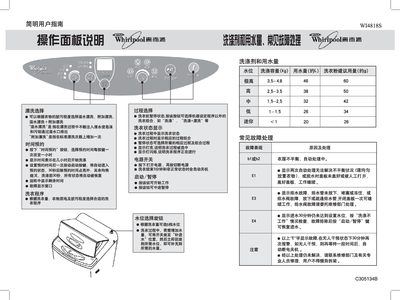

This brief user guide explains how to operate the Whirlpool WI4818S washing machine, including selecting wash programs, setting time delays, and adjusting water levels. It also covers the steps for loading detergent, starting a wash cycle, and using the pause and resume functions.
The guide includes a table of common fault codes (E1‑E4) with their meanings and corrective actions, as well as detailed product specifications such as voltage, power, capacity, dimensions, and inlet water pressure. This manual is written in Chinese.
| Rated voltage | 220V |
|---|---|
| Rated frequency | 50Hz |
| Rated input power | 330W |
| Wash/Spin capacity | 4.8kg |
| Dimensions (W×H×D) | 504mm × 511mm × 913mm |
| Box dimensions | 500mm × 500mm |
| Inlet water pressure | 0.02‑0.78 MPa |
Press the “时间预约” button and each press changes the delay by one hour; the selected time is shown on the display.
E1 indicates an imbalance that could not be automatically corrected; redistribute the laundry or ensure the lid is closed before restarting.
Turn the water‑level knob to the “补进水” position, then immediately return it to the desired level to add water.
