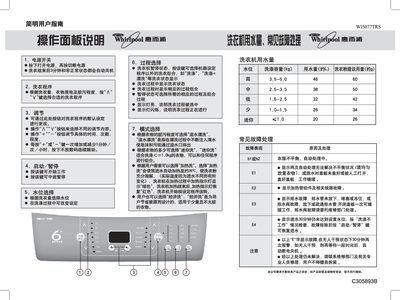

This guide explains how to operate the Whirlpool WI5077TRS washing machine. It covers power on/off, selecting wash programs, adjusting settings, choosing water levels and modes such as Mini Wash, Heated Wash and Eco Wash, as well as starting, pausing and stopping a cycle.
The manual also lists common fault codes (E1‑E4) with troubleshooting steps, provides installation instructions, and details the machine’s technical specifications including voltage, power consumption, dimensions and water‑pressure requirements. This manual is written in Chinese.
| Rated voltage | 220 V |
|---|---|
| Rated frequency | 50 Hz |
| Rated heating input power | 1350 W |
| Rated wash input power | 360 W |
| Total input power | 1350 W |
| Weight | 38 kg |
| Dimensions (W×D×H) | 504 mm × 511 mm × 913 mm |
| Box dimensions | 500 mm × 500 mm |
| Inlet water pressure | 0.02–0.78 MPa |
After selecting a program and loading the laundry, press the "Start/Pause" key to begin the cycle.
Press the "Mode Select" key and choose "Mini Wash" for small loads up to about 1 kg.
Select the "Low" water level; for a 1.0 kg load the machine uses about 26 L of water.
