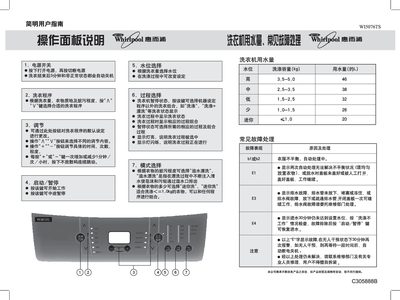

The guide explains the control panel functions, including the power switch, water‑level selection, wash‑program choices, adjustment of wash time and spin speed, and start/pause operation. It also covers process and mode selection such as mini‑wash and economy wash.
In addition, the manual lists product specifications (voltage, frequency, power, capacity, dimensions, water consumption, inlet pressure) and a troubleshooting section with error codes (E1, E3, E4) and their remedies. This manual is written in Chinese.
| Rated voltage | 220V~ |
|---|---|
| Rated frequency | 50Hz |
| Rated input power | 360W |
| Wash and spin capacity | 5.0 Kg |
| Weight | 38 Kg |
| Dimensions (W×H×D) | 504 mm × 511 mm × 913 mm |
| Box dimensions | 500 mm × 500 mm |
| Water consumption (high) | 3.5–5.0 L per cycle |
| Water consumption (medium) | 2.5–3.5 L per cycle |
| Water consumption (low) | 1.5–2.5 L per cycle |
| Water consumption (mini) | 1.0–1.5 L per cycle |
| Inlet pressure | 0.02–0.78 MPa |
Press the "启动/暂停" key to begin operation.
Press the same "启动/暂停" key again to pause.
Use the "模式选择" key and choose "迷你洗".
