The document describes a product named WI4862S. It is an electrical device with a working voltage of 220V and a frequency of 50Hz. The power consumption is 360W. The product dimensions are 537mm x 549mm x 880mm and it weighs 4.8kg. The product features a working pressure of 0.78MPa and high efficiency.

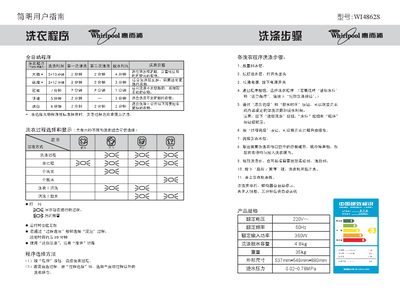

This guide explains how to set up and operate the Whirlpool WI4862S washing machine. It covers selecting wash programs, adjusting water level, using the mini wash function, and starting or pausing cycles. Detailed step‑by‑step instructions are provided for connecting water hoses, loading laundry, adding detergent, and initiating the wash.
The manual also lists the machine’s technical specifications such as voltage, power, capacity, dimensions, and inlet pressure, and includes a fault‑handling section that describes common error codes and corrective actions. This manual is written in Chinese.
| Rated voltage | 220 V |
|---|---|
| Rated frequency | 50 Hz |
| Rated input power | 360 W |
| Washing and spin capacity | 48 kg |
| Weight | 35 kg |
| Dimensions (W × H × D) | 537 mm × 549 mm × 880 mm |
| Inlet water pressure | 0.02‑0.78 MPa |
The mini wash is for washing about 1 kg of frequently changed garments; you must press the mini wash button, which also activates the mini water level and mini program.
Use the water‑level button; the machine adjusts the water amount based on the selected load size.
