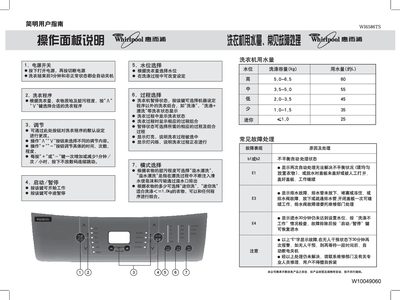

This guide describes how to power the machine, choose water levels, select wash programs, adjust settings, and start or pause a cycle. It also covers special modes such as deep‑wash and mini‑wash, and provides step‑by‑step instructions for loading detergent, connecting water hoses, and setting timers.
The manual lists common fault codes (E1, E3, E4) with their meanings and recommended actions, and includes the product specifications such as voltage, power, capacity, dimensions, and inlet pressure. This manual is written in Chinese.
| Rated voltage | 220V~ |
|---|---|
| Rated frequency | 50Hz |
| Rated input power | 430W |
| Wash/Spin capacity | 6.5 kg |
| Weight | 35 kg |
| Dimensions (W×D×H) | 547 mm × 559 mm × 936 mm |
| Box dimensions | 540 mm × 540 mm |
| Inlet pressure | 0.02–0.78 MPa |
Press the power button to turn the machine on, and press it again to turn it off.
Choose the water level according to the amount of laundry you are washing.
E1 means the machine could not automatically balance the load after two attempts; distribute the clothes evenly and try again.
E3 signals a drainage fault, such as a blocked, frozen, or un‑lowered drain pipe.
