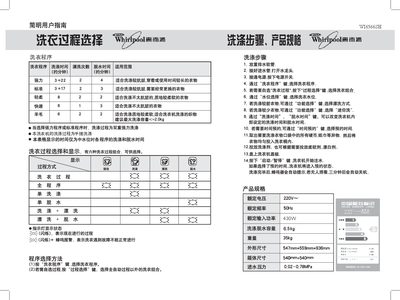

This guide provides step‑by‑step instructions for installing and operating the Whirlpool WI6566SH washing machine, including how to connect water and power, select wash programs, adjust water level, and set a time reservation. It also describes the control panel functions and how to start, pause, or stop a wash cycle.
The manual lists product specifications such as voltage, capacity, dimensions, and water pressure, and includes a troubleshooting section that explains error codes (E1‑E4) and common fault handling procedures. This manual is written in Chinese.
| Rated Voltage | 220 V |
|---|---|
| Rated Frequency | 50 Hz |
| Rated Input Power | 430 W |
| Wash/Spin Capacity | 6.5 kg |
| Weight | 35 kg |
| Dimensions (W×D×H) | 547 mm × 559 mm × 936 mm |
| Box Dimensions | 540 mm × 540 mm |
| Inlet Water Pressure | 0.02‑0.78 MPa |
E1 indicates the load is unbalanced; redistribute the clothes or ensure the lid is closed before restarting.
Press the water level selection key to choose a different level; the setting can also be changed while washing.
