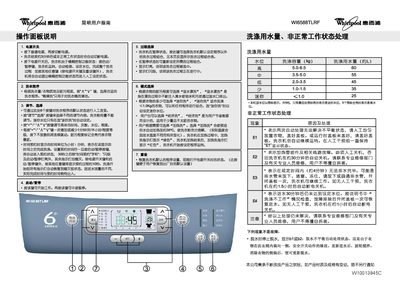

This manual explains how to operate the Whirlpool WI6588TLRF washing machine, covering the control panel, program choices, water‑level settings, and special modes such as mini wash, eco wash, and heated wash. It also details the steps for starting, pausing, and resetting the machine, as well as how to handle common error codes.
In addition to usage guidance, the document lists the machine’s technical specifications, including voltage, power ratings, capacity, dimensions, and inlet water pressure. The troubleshooting section helps users resolve issues like imbalance (E1) and drainage problems. This manual is written in Chinese.
| Rated Voltage | 220V |
|---|---|
| Rated Frequency | 50Hz |
| Rated Heating Input Power | 1350W |
| Rated Washing Input Power | 430W |
| Total Input Power | 1350W |
| Washing/Spin Capacity | 6.5Kg |
| Weight | 35Kg |
| External Dimensions | 547x559x936mm |
| Box Dimensions | 540x540mm |
| Inlet Water Pressure | 0.02-0.78MPa |
Press the Start/Pause button to begin operation; press it again to pause the cycle.
E1 indicates that automatic imbalance correction failed twice; manually redistribute the laundry and close the lid.
Choose the “Mini Wash” option; the machine will automatically set the mini water level for small loads.
Press the Reset button to restore the default program settings as they were when the power was first turned on.
