This document provides packaging information and pin layout dimensions for the QFN-24 package.

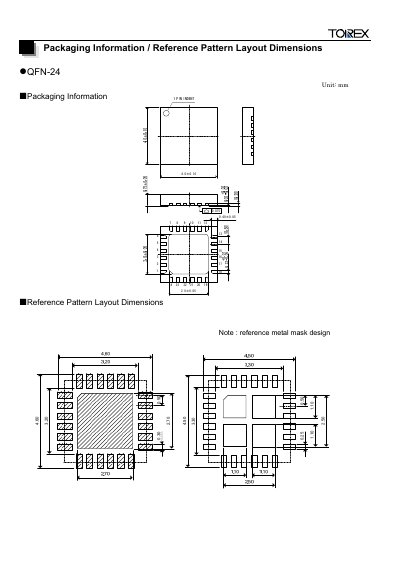

This document provides the packaging information and reference pattern layout dimensions for the Torex QFN‑24 package. All measurements are given in millimetres.
The layout includes overall package size, pin indent dimensions and metal mask reference patterns to assist designers in creating accurate mask designs. This manual is written in Chinese.
| Package size (mm) | 4.60 x 4.50 |
|---|---|
| Pin pitch (mm) | 3.20 x 3.30 |
All dimensions are expressed in millimetres.
