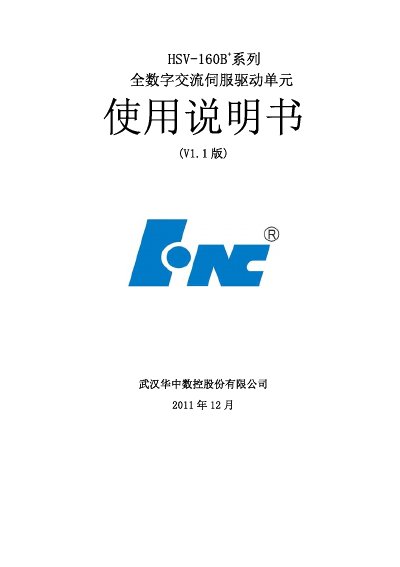

This is the summary of HSV-160B+ series full digital AC servo drive unit user manual. This manual mainly introduces the features and characteristics, installation methods, wiring methods, operation methods, parameter settings and other contents of this product.
The HSV-160B+ is a fully digital AC servo drive unit intended for machine‑tool applications, offering precise position, speed and torque control for compatible servo motors.
The document includes safety warnings, a product overview, detailed electrical specifications, installation and wiring instructions, operation panel description, parameter configuration, run‑adjustment procedures, fault diagnosis, regular maintenance guidelines and an appendix covering brake‑resistor selection. This manual is written in Chinese.
| Continuous current (A/30 min) –010 | 4.8 |
|---|---|
| Input voltage | Three‑phase AC 220 V (‑15 % ~ +10 %, 50/60 Hz) |
| Storage temperature | -20 ~ 80 ℃ |
| Maximum humidity | < 90 % (no condensation) |
| Maximum vibration | < 0.5 G (4.9 m/s²) |
| Speed response | ≥ 300 Hz |
| Pulse frequency | ≤ 500 kHz |
| Control methods | Position, Speed, Internal speed, JOG |
The drive is powered from a three‑phase AC 220 V source, tolerance ‑15 % to +10 % at 50 Hz or 60 Hz.
The warranty lasts 18 months from the date of manufacture or 1 year from delivery to the end user, whichever occurs first.
Basic gain is adjusted in the parameter setting section (chapter 8.6.1) using the drive’s menu interface.
