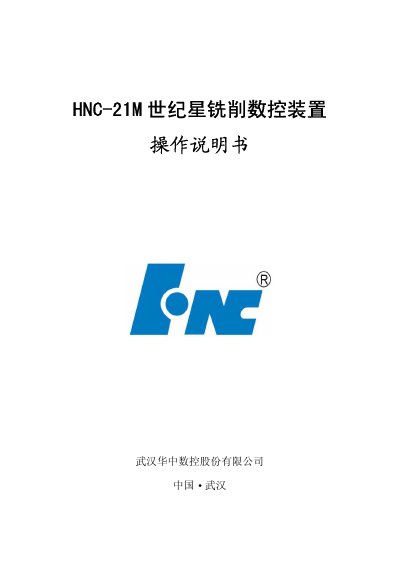

This manual details the operation, programming, and maintenance of the HNC-21M milling CNC controller by Wuhan Huazhong.
The document is the user operating manual for the HNC-21M Century Star Milling CNC Controller manufactured by Wuhan Huazhong Numerical Control Co., Ltd. It covers basic configuration, technical specifications, and the structure of the operation panel including the display, keyboard, and MPG unit.
The guide provides comprehensive instructions on system startup, shutdown, emergency stops, and manual machine operations such as axis movement and spindle control. It also details software interface usage for program input, editing, storage, and execution, along with network communication settings and parameter configuration. This manual is written in Chinese.
| Max control axes | 4 axes (X Y Z 4TH) |
|---|---|
| Max linkage axes | 4 axes |
| Max programming size | 99999.999mm |
| Min resolution | 0.01 m-10 m (configurable) |
| Display type | 7.5 inch Color LCD |
| Resolution | 640 x 480 |
The system supports a maximum of 4 control axes (X, Y, Z, and 4TH).
The minimum resolution can be set between 0.01 mm and 10 mm.
Yes, it supports NT, Novell, and Internet networks.
