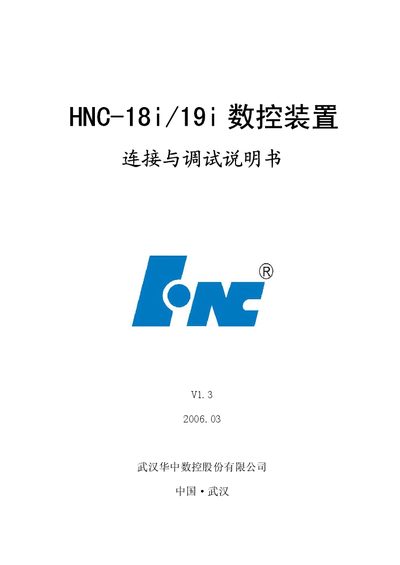

HNC HNC-18i/19i CNC Controller Connection and Debugging Manual

This manual provides detailed instructions for connecting, debugging, and troubleshooting the HNC-18i/19i series numerical control units.

Brand: HNC
Document type: User Manual
Language: Chinese
Pages: 138
File format: PDF
File size: 5.1 MB
Updated: 14 October, 2026
MD5 checksum: A3F5F48979700F1E438FB9AFCD613938
PDF: HNC HNC-18i/19i CNC Controller Connection and Debugging Manual PDF

About this manual

The document serves as a comprehensive guide for the installation, connection, and commissioning of the HNC-18i/19i series CNC controllers manufactured by Wuhan HNC Numerical Control Co., Ltd. It covers essential topics including safety precautions, hardware connections (power, I/O, spindle, feed drives), parameter settings, and system debugging procedures. This manual is written in Chinese.

What's inside

Safety Precautions
Connection Diagrams
Power Supply Requirements
Parameter Settings
System Debugging
Fault Diagnosis
Typical Design Examples

Frequently asked questions

What is the maximum number of axes that can be linked simultaneously?

The controller supports a maximum of 3 linked axes.

What is the maximum size of G-code programs that can be processed?

The system can directly process G-code programs up to 2GB in size.

What is the maximum allowable resistance for the grounding connection?

The grounding resistance must be less than 4 ohms.
