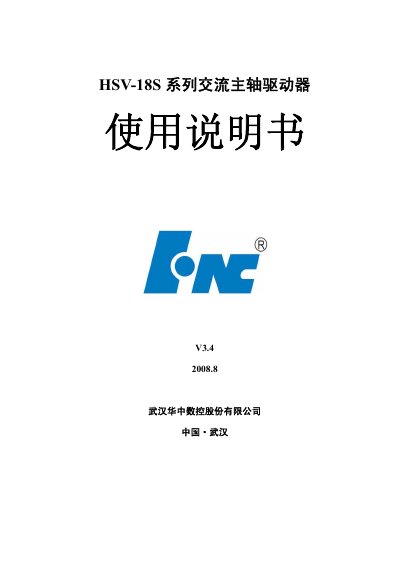

The Wuhan Huazhong CNC HSV-18S AC spindle driver user manual provides safety warnings, wiring instructions, operation, parameter settings, troubleshooting…
This manual describes the HSV-18S series fully digital AC spindle driver released by Wuhan Huazhong CNC. It explains the device’s structure, control options, and key features such as flexible control modes, comprehensive status display, and rich I/O interfaces.
The document is organized into safety warnings, product overview, wiring diagrams, operation and display, parameter configuration, run‑adjustment procedures, fault diagnosis, and mechanical installation dimensions, with tables of electrical specifications and recommended brake resistor values. This manual is written in Chinese.
| Input voltage (single‑phase) | AC 220 V ±15%/ +10% 50/60 Hz |
|---|---|
| Input voltage (three‑phase) | AC 380 V ±15%/ +10% 50/60 Hz |
| Speed range | 1 r/min – 10 000 r/min |
| Encoder line count options | 1000, 1024, 2000, 2500 p/r |
| Recommended brake resistor (HSV-18S‑100) | 16 Ω, ≥3000 W |
Ensure the input power is OFF, have a qualified electrical engineer perform the wiring, and connect the grounding terminal before any connections.
Select the position control mode (pulse interface) in the function menu and configure the pulse parameters as described in the manual.
