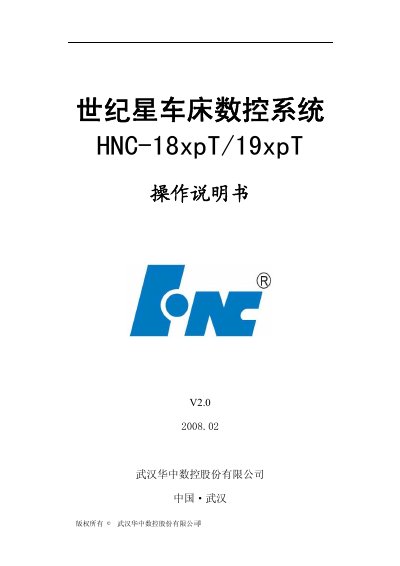

This document is the operation manual for the Century Star Lathe CNC System HNC-18xpT/19xpT. It introduces the features and characteristics of this CNC system, provides detailed operation instructions, usage precautions, and other necessary knowledge. It also presents the possible accidents caused by improper operation and the troubleshooting methods for common faults.
The HNC-18xpT/19xpT is a high‑performance, cost‑effective CNC controller developed by Huazhong CNC. It uses an industrial PC platform, a 32‑bit processor, 4 MB RAM, and a 5.7‑inch LCD display, supporting both servo and stepper drives.
This manual covers the system architecture, hardware interfaces, software menus, manual operation, data settings, program management, run control, network and serial communication, display options, system updates, fault handling, and maintenance procedures. This manual is written in Chinese.
| Maximum programming size | 99999.999 mm |
|---|---|
| Display | 5.7‑inch LCD, 320×240 pixels |
| Number of axes | 2 (lathe) |
| RAM | 4 MB |
| Flash ROM | 1 MB |
| RS232 max transfer rate | 38.4 kbps |
| Network interface | Ethernet |
It supports two axes for lathe operation.
The controller uses a 5.7‑inch LCD with a resolution of 320 × 240 pixels.
The maximum programming size is 99999.999 mm.
It can be connected via an Ethernet network interface.
