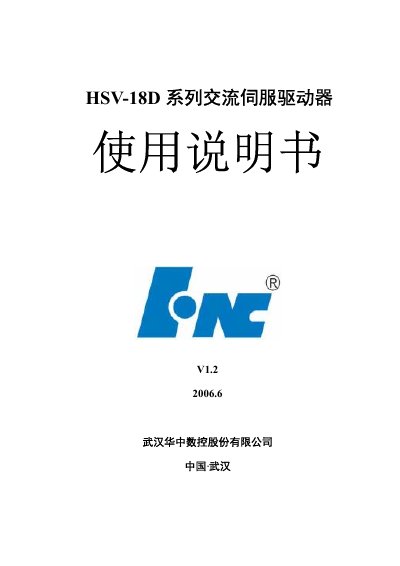

The HSV-18D AC servo drive user manual introduces the specifications, wiring, operation and display, parameter settings, operation and adjustment, fault diagnosis, installation dimensions, and other information of the product.
The HSV-18D series is a fully digital AC servo driver offered by Wuhan Huazhong CNC for industrial automation. It features compact construction, flexible control modes and extensive status monitoring.
The manual covers safety warnings, product overview, wiring diagrams, operation and display functions, parameter settings, start‑up and adjustment procedures, fault diagnosis, and installation dimensions. It also lists technical specifications and protection functions for the driver. This manual is written in Chinese.
| Control power supply (single‑phase) | AC220V -15~+10% 50/60Hz |
|---|---|
| Input power (three‑phase) | AC380V -15~+10% 50/60Hz |
| Continuous current HSV-18D‑025 | 8.2 A |
| Short‑time max current HSV-18D‑025 | 16.4 A |
| Continuous current HSV-18D‑050 | 16.4 A |
| Short‑time max current HSV-18D‑050 | 32.8 A |
| Continuous current HSV-18D‑075 | 23.5 A |
| Short‑time max current HSV-18D‑075 | 47.1 A |
| Speed frequency response | ≥300 Hz |
| Number of protection functions | 16 |
The driver includes 16 different protection and fault‑diagnosis functions.
The HSV-18D‑050 model has a continuous current rating of 16.4 A and a short‑time maximum of 32.8 A.
