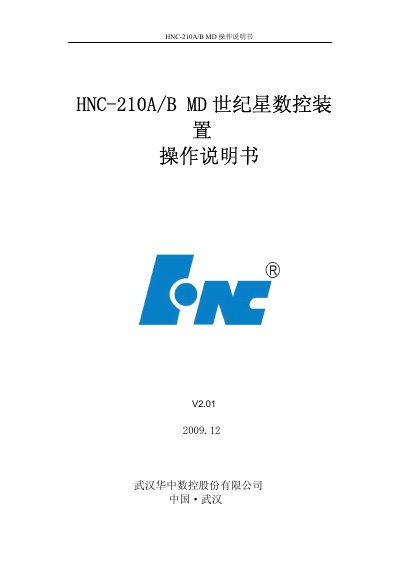

Operating manual for the Huazhong CNC HNC-210A/BMD numerical control unit, covering setup, operation, and maintenance.
The Huazhong CNC HNC-210A/BMD manual provides a complete guide to the CNC controller used in Century Star milling machines. It includes an overview of the hardware configuration, main functions, and software interface, with detailed illustrations and examples for training and practical use.
The document covers power‑on procedures, emergency stop, manual machine operation, system settings, program editing, run control, networking, diagnostics, and maintenance. Appendices contain quick reference tables, system parameter explanations, and a glossary of abbreviations. This manual is written in Chinese.
| Maximum control axes | 4 axes (210A‑MD) / 8 axes (210B‑MD) |
|---|---|
| Maximum linked axes | 4 axes (210A‑MD) / 8 axes (210B‑MD) |
| Maximum programming size | 999.999 mm |
| Minimum resolution | 1 µm |
| Supported communication interfaces | RS‑232, Ethernet (optional), DNC |
It can control up to 4 axes for the 210A‑MD version and up to 8 axes for the 210B‑MD version.
The controller provides a minimum resolution of 1 µm.
The unit supports RS‑232, optional Ethernet, and DNC communication.
The maximum programming size is 999.999 mm.
