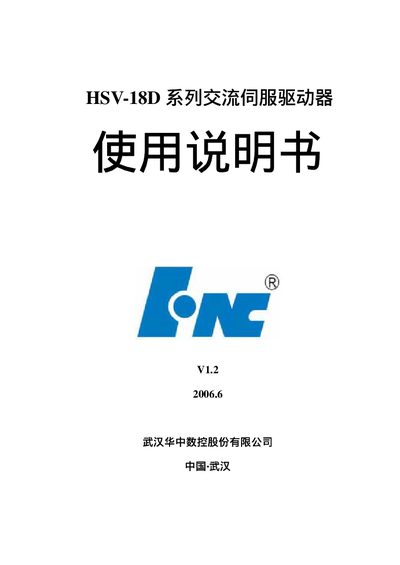

The HSV-18D series AC servo drive user manual mainly introduces the product overview, wiring method, operation and display, parameter setting, operation and adjustment, fault diagnosis, and installation size. This drive has multiple operating modes and functions, and provides various interface circuits and standard wiring methods, suitable for position control, speed/torque control, and closed-loop control applications. In addition, the drive also has protection diagnosis function to ensure the safe operation of the equipment.
This manual provides safety warnings, installation instructions, wiring diagrams and configuration steps for the HSV-18D series AC servo driver. It explains how to connect power, control and feedback terminals, and describes the required grounding and cooling measures.
The document also details operation modes such as position, speed and torque control, shows how to modify and save parameters, and includes a fault diagnosis chapter with troubleshooting procedures and dimensional drawings for different model variants. This manual is written in Chinese.
| Mounting screw size | M4 |
|---|
Do not touch terminals, ensure proper grounding, avoid water exposure, keep the device away from fire hazards, and maintain ambient temperature below 45 °C.
The manual provides a drawing of the HSV-18D‑050 dimensions, but specific measurements are shown only in the figure.
