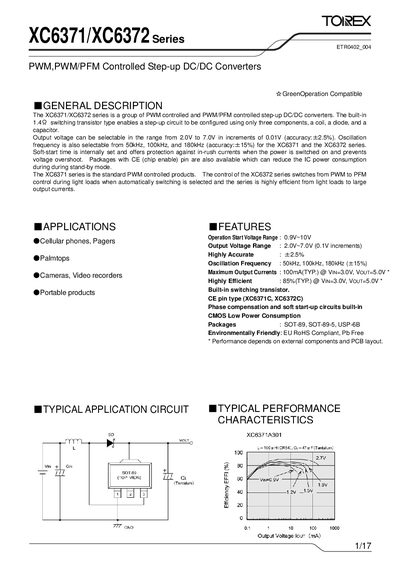

The XC6371/XC6372 series are a group of PWM controlled and PWM/PFM controlled step-up DC/DC converters. They feature a built-in 1.4Ω switching transistor, allowing a step-up circuit to be configured using only three components: a coil, a diode, and a capacitor. The output voltage can be selected in the range from 2.0V to 7.0V with increments of 0.01V (accuracy: ±2.5%). The oscillation frequency can also be selected from 50kHz, 100kHz, and 180kHz (accuracy: ±15%). The soft-start time is internally set to protect against in-rush currents during power-on and prevent voltage overshoot. Packages with a CE (chip enable) pin are available to reduce IC power consumption during standby mode. The XC6371 series is the standard PWM controlled product, while the XC6372 series switches from PWM to PFM control during light loads when automatic switching is selected, offering high efficiency from light loads to large output currents.
The XC6371/XC6372 series are PWM‑controlled and PWM/PFM‑controlled step‑up DC/DC converters. They use a built‑in switching transistor and require only three external components (coil, diode, capacitor). Output voltage is selectable from 2.0 V to 7.0 V and oscillation frequency from 50 kHz, 100 kHz or 180 kHz.
Typical applications include cellular phones, pagers, palmtops, cameras and other portable products. The devices are offered in SOT‑89, SOT‑89‑5 and USP‑6B packages and are RoHS‑compliant. Electrical characteristics such as maximum input voltage, no‑load current and efficiency are detailed in the datasheet.
| Output Voltage Range | 2.0 V – 7.0 V (0.1 V steps) |
|---|---|
| Oscillation Frequency Options | 50 kHz, 100 kHz, 180 kHz |
| Maximum Input Voltage (VIN) | 10 V |
| No‑Load Input Current | ≈12.8 µA (typ.) |
| Typical Efficiency | ≈85 % |
| Soft‑Start Time | 4 ms – 20 ms |
| Operating Temperature Range | -30 °C to +80 °C |
The series can be set to output voltages from 2.0 V to 7.0 V in 0.01 V increments.
The converters can operate at 50 kHz, 100 kHz or 180 kHz.
Typical efficiency is about 85 % under the specified conditions.
They are available in SOT‑89, SOT‑89‑5 and USP‑6B packages.
