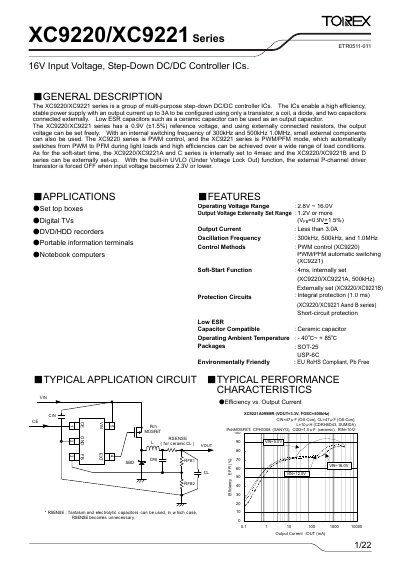

XC9220/XC9221 series is a group of multi-purpose step-down DC/DC controller ICs with 16V input voltage. These ICs enable a high efficiency, stable power supply with an output current up to 3A to be configured using only a transistor, a coil, a diode, and two capacitors connected externally. Low ESR capacitors such as a ceramic capacitor can be used as an output capacitor. The XC9220/XC9221 series has a 0.9V (±1.5%) reference voltage, and using externally connected resistors, the output voltage can be set freely. With an internal switching frequency of 300kHz and 500kHz 1.0MHz, small external components can also be used. The XC9220 series is PWM control, and the XC9221 series is PWM/PFM mode, which automatically switches from PWM to PFM during light loads and high efficiencies can be achieved over a wide range of load conditions. As for the soft-start time, the XC9220/XC9221A and C series is internally set to 4msec and the XC9220/XC9221B and D series can be externally set-up. With the built-in UVLO (Under Voltage Lock Out) function, the external P-channel driver transistor is forced OFF when input voltage becomes 2.3V or lower.
The XC9220/XC9221 series provides a high‑efficiency, stable power supply solution that can be built with only an external transistor, inductor, diode and two capacitors. It operates from 2.8 V to 16 V input, offers three internal switching frequencies (300 kHz, 500 kHz, 1 MHz) and supports both PWM and PWM/PFM control modes.
The devices include built‑in UVLO, soft‑start, short‑circuit and integral protection functions, and are compatible with low‑ESR ceramic output capacitors. They are offered in compact SOT‑25 and USP‑6C packages and are RoHS‑compliant.
| Operating Voltage Range | 2.8 V – 16.0 V |
|---|---|
| Maximum Output Current | < 3.0 A |
| Oscillation Frequency Options | 300 kHz, 500 kHz, 1.0 MHz |
| Soft‑Start Time | 4 ms (internally set) / externally set |
| UVLO Threshold | 2.3 V (typical) |
| Maximum Duty Ratio | 100 % |
| Package Types | SOT‑25, USP‑6C |
The devices operate from 2.8 V up to 16.0 V input.
Output voltage is set by external resistors according to VOUT = 0.9 × (RFB1 + RFB2) / RFB2.
They are offered in SOT‑25 and USP‑6C surface‑mount packages.
