XC9242/XC9243 series 2A synchronous step-down DC/DC converters are a group of synchronous-rectification step-down DC/DC converters with a built-in 0.11Ω (TYP.) P-channel MOS driver transistor and 0.12Ω(TYP.) N-channel MOS switching transistor, designed to allow the use of ceramic capacitors. The small size allows for high integration and is suitable for a variety of applications.
The XC9242/XC9243 series from Torex Semiconductor are synchronous step‑down DC/DC converters featuring built‑in P‑channel and N‑channel MOS driver transistors. They support a wide input range, configurable output voltage and offer high efficiency for portable electronics such as mobile phones and cameras.

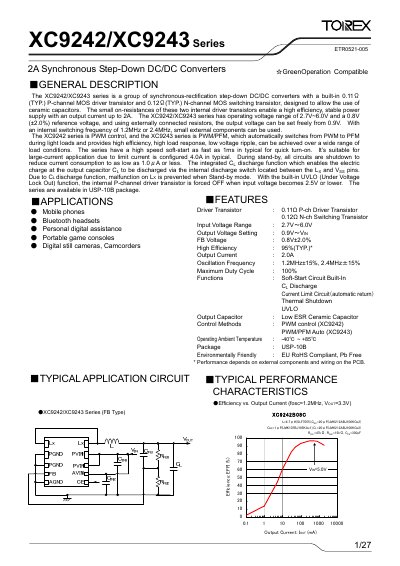

The document provides detailed electrical characteristics, absolute maximum ratings, pin assignments, typical application circuits, and packaging information for designers who need to integrate these converters into their products.
| Typical Efficiency | 95 % (typ.) |
|---|---|
| Oscillation Frequency | 1.2 MHz ± 15 % / 2.4 MHz ± 15 % |
| Package | USP‑10B |
| Operating Ambient Temperature | -40 °C – +85 °C |
Typical efficiency is 95 % under rated conditions.
The devices are supplied in a USP‑10B package.
