The XC6405 Series are precise, low‑noise, high‑speed, high‑current low‑dropout regulators with built‑in voltage detector. They are fabricated using Torex’s CMOS process and are compatible with low‑ESR ceramic capacitors for added output stability.

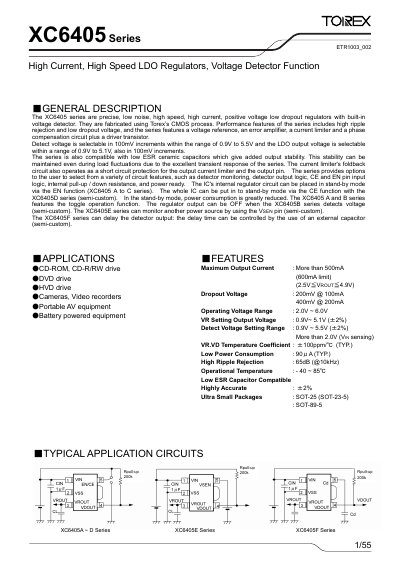

Key features include selectable output voltage (0.9 V‑5.1 V) and detect voltage (0.9 V‑5.5 V) in 100 mV steps, maximum output current over 500 mA, low dropout voltage, high ripple rejection, and multiple package options (SOT‑25 and SOT‑89‑5). The datasheet provides detailed pin configurations, electrical characteristics, and typical application circuits for devices such as CD‑ROM, DVD, and portable AV equipment.
| Maximum Output Current | More than 500 mA (600 mA limit) |
|---|---|
| Dropout Voltage | 200 mV @ 100 mA, 400 mV @ 200 mA |
| Operating Voltage Range | 2.0 V ~ 6.0 V |
| Output Voltage Setting Range | 0.9 V ~ 5.1 V (±2%) |
| Detect Voltage Setting Range | 0.9 V ~ 5.5 V (±2%) |
| Ripple Rejection | 65 dB @ 10 kHz |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Package Types | SOT‑25 (SOT‑23‑5) and SOT‑89‑5 |
The series can deliver more than 500 mA, with a 600 mA limit.
They are offered in ultra‑small SOT‑25 (SOT‑23‑5) and SOT‑89‑5 packages.
Output voltage is selectable from 0.9 V to 5.1 V in 100 mV increments.
The regulator provides 65 dB ripple rejection at 10 kHz.
