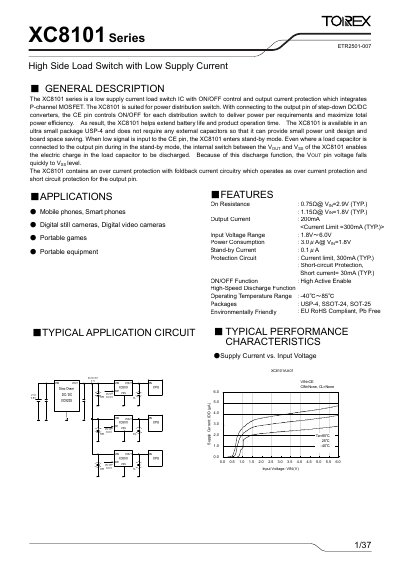

The XC8101 series is a low supply current load switch IC with ON/OFF control and output current protection which integrates P-channel MOSFET. The XC8101 is suited for power distribution switch. With connecting to the output pin of step-down DC/DC converters, the CE pin controls ON/OFF for each distribution switch to deliver power per requirements and maximize total power efficiency. As result, the XC8101 helps extend battery life and product operation time. The XC8101 is available in an ultra small package USP-4 and does not require any external capacitors so that it can provide small power unit design and board space saving. When low signal is input to the CE pin, the XC8101 enters stand-by mode. Even where a load capacitor is connected to the output pin during in the stand-by mode, the internal switch between the VOUT and VSS of the XC8101 enables the electric charge in the load capacitor to be discharged. Because of this discharge function, the VOUT pin voltage falls quickly to VSS level. The XC8101 contains an over current protection with foldback current circuitry which operates as
The XC8101 series is a low‑supply‑current high‑side load‑switch IC that integrates a P‑channel MOSFET, providing ON/OFF control and output‑current protection. It is offered in ultra‑small packages (USP‑4, SOT‑25, SSOT‑24) and requires no external capacitors, making it suitable for mobile phones, cameras, portable games and other battery‑powered equipment.
The document details electrical characteristics, pin configuration, typical application circuits, packaging information and marking rules. It also includes performance graphs for on‑resistance, supply current, and power dissipation across temperature and voltage ranges. This manual is written in Chinese.
| Input Voltage Range | 1.8 V – 6.0 V |
|---|---|
| Output Current (limit) | 200 mA (typ.) – 300 mA (typ.) |
| On‑Resistance (USP‑4) | 0.75 Ω @ VIN=2.9 V (typ.) |
| Supply Current (IDD) at VIN=1.8 V | 3.0 µA |
| Stand‑by Current | 0.1 µA |
| Operating Temperature Range | -40 °C – 85 °C |
| Package Types | USP‑4, SOT‑25, SSOT‑24 |
The XC8101 operates with an input voltage from 1.8 V up to 6.0 V.
The standby current is specified as 0.1 µA.
The device is offered in USP‑4, SOT‑25 and SSOT‑24 packages.
