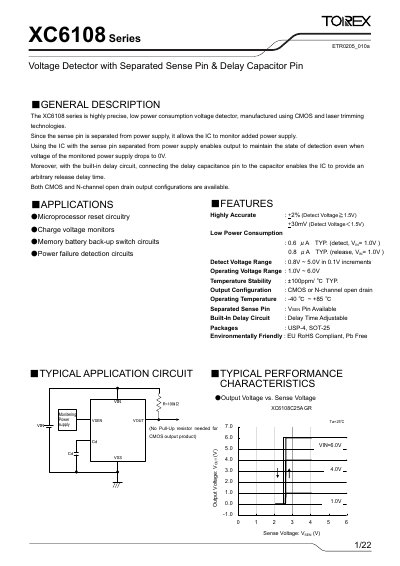

The XC6108 series is a highly precise, low power consumption voltage detector, manufactured using CMOS and laser trimming technologies. Since the sense pin is separated from power supply, it allows the IC to monitor added power supply. Using the IC with the sense pin separated from power supply enables output to maintain the state of detection even when voltage of the monitored power supply drops to 0V. Moreover, with the built-in delay circuit, connecting the delay capacitance pin to the capacitor enables the IC to provide an arbitrary release delay time. Both CMOS and N-channel open drain output configurations are available.
The XC6108 series is a highly precise, low‑power voltage detector offered by Torex. It features a separated sense pin that allows monitoring of an added power supply and includes a built‑in delay circuit for adjustable release delay times.
Both CMOS and N‑channel open‑drain output configurations are available, with options for built‑in delay capacitance and various hysteresis settings. The device is supplied in USP‑4 and SOT‑25 packages and complies with EU RoHS standards.
| Output Configuration | CMOS or N‑channel open drain |
|---|---|
| Typical Detect Current | 0.6 µA (detect, VIN=1.0 V) |
| Detect Voltage Range | 0.8 V ~ 5.0 V in 0.1 V increments |
| Operating Voltage Range | 1.0 V ~ 6.0 V |
| Operating Temperature | -40 °C ~ +85 °C |
| Package Types | USP‑4, SOT‑25 |
| Power Dissipation (SOT‑25) | 250 mW |
It is available with either CMOS output or N‑channel open‑drain output.
The typical detect‑mode current is 0.6 µA at a 1.0 V input.
The detector can sense voltages from 0.8 V to 5.0 V in 0.1 V steps.
The IC is supplied in USP‑4 and SOT‑25 surface‑mount packages.
