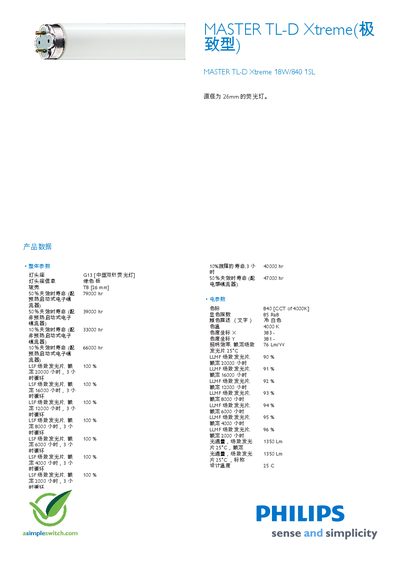

This document describes the parameters and characteristics of the MASTER TL-D Xtreme 18W/840 1SL fluorescent lamp with a diameter of 26mm.
The Master TL-D Xtreme 18W/840 1SL is a 26 mm diameter fluorescent lamp designed for high‑efficiency lighting. The sheet provides the overall length, lamp power, dimmable capability and key photometric values such as luminous flux, colour temperature and colour rendering index.
Additional information includes rated lamp life for different ballast types, packaging dimensions, barcodes and regulatory identifiers. All specifications are presented in metric units and conform to Philips product coding. This manual is written in Chinese.
| Overall length | 604.0 mm (max) |
|---|---|
| Rated lamp power | 18 W |
| Dimmable | Yes |
| Lamp current | 0.370 A |
| Luminous flux | 1350 lm |
| Rated life (pre‑heat electronic ballast) | 20 000 h |
The lamp is rated at 18 W.
Yes, the lamp is dimmable.
