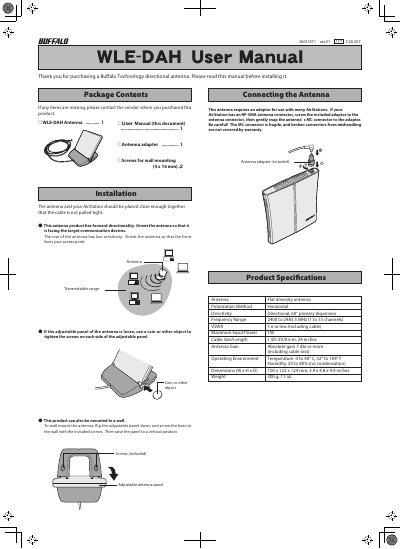

This is a PDF file. It is the user manual for WLE-DAH antenna. This antenna is a directional antenna with high sensitivity. It can be mounted on the wall and connected to AirStation.
This manual explains how to install and use the Buffalo WLE-DAH directional antenna. It describes the forward‑directional design, proper orientation, wall‑mounting procedure, and required adapter for RP‑SMA connectors.
The document also lists the package contents, detailed technical specifications such as frequency range, gain, VSWR, and environmental limits, and includes warranty information for the product. This manual is written in Chinese.
| Frequency Range | 2400 to 2483.5 MHz (1 to 13 channels) |
|---|---|
| VSWR | 1.6 or less (including cable) |
| Maximum Input Power | 1 W |
| Antenna Gain | Absolute gain 7 dBi or more (including cable loss) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20 % to 80 % (no condensation) |
| Dimensions (W × H × D) | 100 × 122 × 124 mm (3.9 × 4.8 × 4.9 in) |
| Weight | 300 g (11 oz) |
The antenna should be faced toward the target communication devices with the front side pointing at the access point; the rear side has low sensitivity and should face away.
An antenna adapter (included) must be screwed onto the antenna connector, then the MC connector is snapped onto the adapter.
Buffalo provides a 2‑year limited warranty for the product from the date of purchase.
The antenna is rated for a maximum input power of 1 W.
