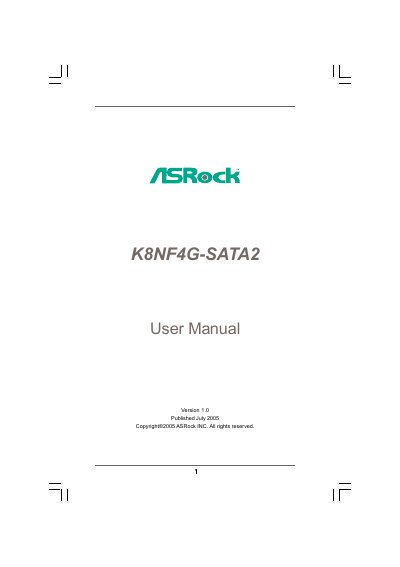

K8NF4G-SATA2 User Manual
This manual guides users through the setup and operation of the ASRock K8NF4G-SATA2 motherboard. It includes safety notices, package contents, and detailed hardware specifications.
The document covers CPU and memory installation, expansion slot usage, BIOS setup, audio/video configuration, and software support via the included Support CD. An appendix explains AMD’s Cool ’n’ Quiet technology and other advanced features.
| Form Factor | Micro ATX (9.6" x 8.0") |
|---|---|
| CPU Socket | 754‑Pin socket supporting AMD Athlon 64 and Sempron |
| Northbridge Chipset | nVidia GeForce 6100 |
| Southbridge Chipset | nVidia nForce 410 MCP |
| Memory | 2 DDR DIMM slots, DDR400/333/266, max 2 GB |
| Expansion Slots | 2 PCI, 1 PCI‑Express x16, 1 PCI‑Express x1, 1 AMR |
| Integrated Graphics | NV44, DX9.0 VGA, Pixel Shader 3.0, 128 MB shared memory |
| Audio Codec | Realtek ALC850 7.1‑channel AC’97 |
| LAN | Realtek RTL8201CL, 10/100 Ethernet, Wake‑On‑LAN |
| SATA Connectors | 2 Serial ATAII 3.0 Gb/s, RAID 0/1/JBOD (no hot‑plug) |
| BIOS | 4 Mb AMI BIOS |
It uses a 754‑Pin socket that supports AMD Athlon 64 and Sempron processors.
Yes, the two SATAII connectors support RAID 0, RAID 1, and JBOD.
