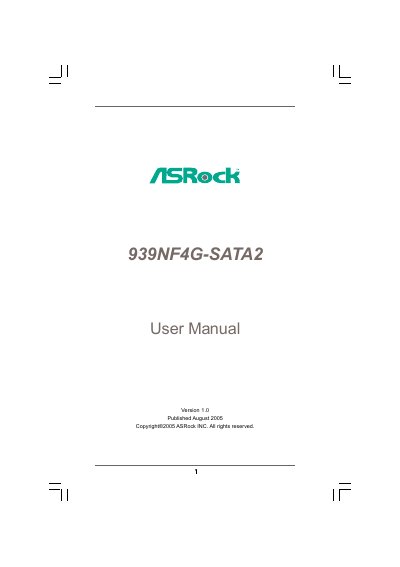

This document is the user manual for the 11111 939NF4G-SATA2 motherboard, describing the features and characteristics of the product.
This manual introduces the ASRock 939NF4G-SATA2 Micro ATX motherboard, its features, and the components included in the package. It guides users through hardware installation, including CPU, memory, expansion cards, and SATA devices, and explains the onboard I/O connectors.
The document also covers BIOS Setup Utility options, security password configuration, software support via the included Support CD, and an appendix on enabling AMD’s Cool ‘n’ Quiet technology. Detailed specifications of the chipset, memory, audio, LAN, and other interfaces are listed for reference.
| Form Factor | Micro ATX (9.6" x 8.8") |
|---|---|
| CPU Socket | 939‑Pin Socket supporting AMD Athlon 64/64FX/64X2 |
| Northbridge Chipset | nVidia GeForce 6100 |
| Southbridge Chipset | nVidia nForce 410 MCP |
| SATA Connectors | 2 x Serial ATAII 3.0 Gb/s (RAID 0,1,JBOD) |
| IDE Connectors | 2 x ATA133 IDE connectors (4 devices) |
| Audio Codec | Realtek ALC850 7.1‑channel AC’97 |
| LAN | Realtek PHY RTL8201CL, 10/100 Mbps |
| BIOS | 4 Mb AMI BIOS |
It uses a 939‑pin socket that supports AMD Athlon 64, 64FX, and 64X2 processors.
Yes, the Security Screen in the BIOS Setup Utility lets you set or change the supervisor password.
