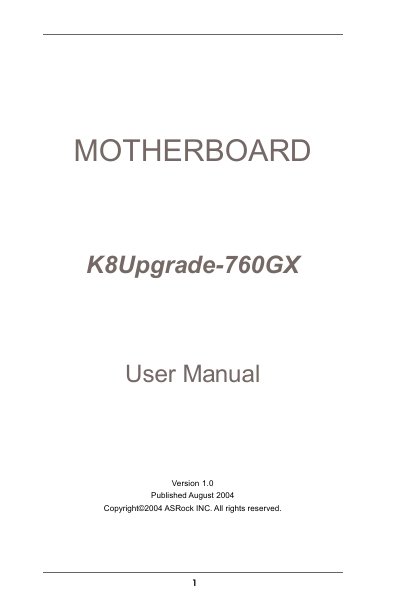

This document is the user manual for ASRock K8Upgrade-760GX motherboard, which describes the features and characteristics of the motherboard.
This manual introduces the ASRock K8Upgrade-760GX Micro ATX motherboard, its package contents, and key features such as AMD’s Cool ‘n’ Quiet technology, supported CPUs, and I/O options. It includes a detailed layout diagram and a list of connectors and headers.
The guide covers hardware installation, BIOS setup utility, software support via the included Support CD, and an appendix with power‑saving instructions. Safety precautions, jumper settings, and troubleshooting tips are also provided.
| Form Factor | Micro ATX (9.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | 754‑Pin Socket |
| Supported CPUs | AMD Athlon 64 and Sempron processors |
| North Bridge Chipset | SiS 760GX |
| South Bridge Chipset | SiS 964 |
| Memory Slots | 2 DDR DIMM slots (DDR1 and DDR2) |
| Maximum Memory | 2 GB |
| SATA Connectors | 2 x SATA, 1.5 Gb/s |
| USB 2.0 Ports | 8 ports (6 on I/O panel + 2 via headers) |
| LAN | 10/100 Mbps Ethernet |
| Audio | 5.1‑channel AC’97 |
| VGA | Mirage 2 GPU, DirectX 8.1 support |
It provides eight USB 2.0 ports – six on the I/O panel and two additional ports via on‑board headers.
The board uses a 754‑Pin socket that supports AMD Athlon 64 and Sempron processors.
