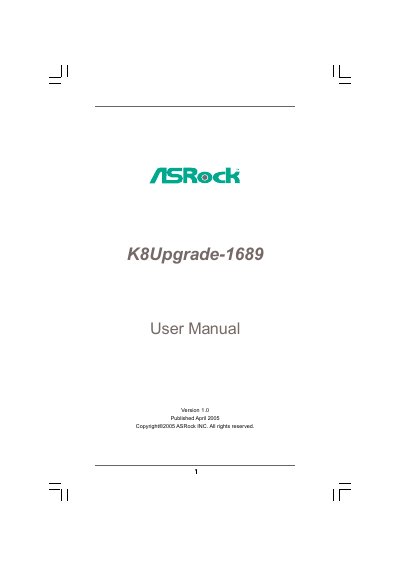

K8Upgrade-1689 User Manual
This manual introduces the ASRock K8Upgrade-1689 ATX motherboard, lists the package contents, and details the hardware layout, connectors, and supported components. It also explains the installation process for the CPU, memory, storage, and other peripherals.
The document includes a BIOS setup guide, security password configuration, software support information, and an appendix on AMD’s Cool ’n’ Quiet power‑saving technology. It is intended for end users and system builders who need to assemble and configure the board.
| Form Factor | ATX (7.5 in x 12.0 in) |
|---|---|
| CPU Socket | 754‑Pin socket supporting AMD Athlon 64 and Sempron |
| Chipset | ALi M1689 |
| Memory Slots | 2 x DDR DIMM slots (DDR1 and DDR2), max 2 GB |
| IDE Ports | 2 x ATA133 IDE ports, up to 4 IDE devices |
| SATA Connectors | 2 x SATA connectors, up to 2 SATA devices at 1.5 Gb/s |
| USB Ports | 8 USB 2.0 ports (4 ready‑to‑use, 4 via headers) |
| Audio | 7.1‑channel AC’97 audio |
| LAN | 10/100 Mbps Ethernet (802.3u) |
The motherboard supports Microsoft Windows 98 SE, ME, 2000, and XP.
Enable AMD’s Cool ’n’ Quiet technology under Windows to reduce power consumption.
The Future CPU Port allows upgrading from an AMD 754‑Pin CPU to an AMD 939‑Pin CPU.
