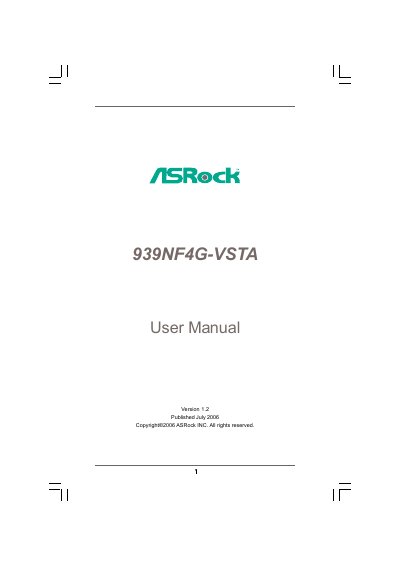

939NF4G-VSTA User Manual, Introduces the function characteristics of 939NF4G-VSTA motherboard
This manual introduces the ASRock 939NF4G-VSTA motherboard, outlines safety notices, and lists the package contents. It is intended for system integrators and end‑users who need step‑by‑step guidance for installing and configuring the board.
The document covers hardware installation (CPU, memory, expansion slots, SATA, USB, etc.), BIOS setup utility, operating‑system installation, driver and utility support on the included CD, and detailed specifications of the chipset, memory, audio, LAN, and power connectors. An appendix explains how to enable AMD’s Cool ’n’ Quiet technology.
| Form Factor | Micro ATX (9.6" x 8.8") |
|---|---|
| CPU Socket | 939‑Pin Socket supporting AMD Athlon 64/64FX/64X2 |
| Chipset | Northbridge: nVidia GeForce 6100, Southbridge: nVidia nForce 410 MCP |
| Memory Slots | 4 x DDR DIMM slots, supporting DDR400/333/266, up to 4 GB |
| Integrated Graphics | NV44 graphics, DX9.0, Pixel Shader 3.0, up to 128 MB shared memory |
| Audio Codec | Realtek ALC888 7.1‑channel HD audio |
| LAN | Realtek PHY RTL8201CL, 10/100 Ethernet, Wake‑On‑LAN support |
| SATA Connectors | 2 x SATAII 3.0 Gb/s connectors with RAID 0/1/JBOD and Hot‑Plug |
It has four DDR DIMM slots.
The board uses a 4 MB AMI BIOS.
Yes, the SATAII connectors support RAID 0, RAID 1, and JBOD.
Updated drivers are available on the ASRock website.
