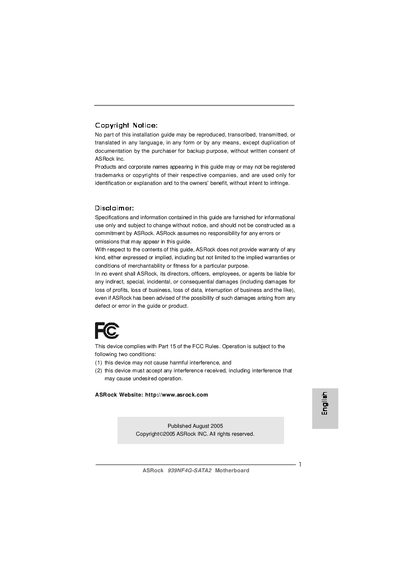

ASRock 939NF4G-SATA2 Motherboard Quick Installation Guide
This Quick Installation Guide introduces the ASRock 939NF4G‑SATA2 motherboard, a Micro‑ATX board with a 939‑pin socket for AMD Athlon 64 series CPUs. It provides an overview of the board layout, connector locations, and the components included in the package.
The guide walks through step‑by‑step procedures for installing the CPU, memory modules, and other peripherals, and includes cautions, BIOS feature notes, and RAID configuration instructions. It also lists the technical specifications of the board.
ASRock 939NF4G-SATA2 specifications
| Form factor | Micro ATX (9.6" x 8.8") |
|---|---|
| CPU socket | 939‑Pin socket for AMD Athlon 64/64FX/64X2 |
| Front‑side bus | 1 GHz (2.0 GT/s) |
| Northbridge chipset | nVidia GeForce 6100 |
| Southbridge chipset | nVidia nForce 410 |
| Memory slots | 4 x DDR DIMM slots (dual‑channel) |
| Maximum memory | 4 GB |
| Integrated graphics | NV44, DX9.0 VGA, up to 128 MB shared |
| Audio codec | Realtek ALC850 7.1‑channel AC’97 |
| LAN controller | Realtek PHY RTL8201CL, 10/100 Mbps |
| SATA connectors | 2 x Serial ATAII 3.0 Gb/s (RAID 0/1/JBOD) |
| Power connectors | 20‑pin ATX and 4‑pin 12 V |
Source: ASRock 939NF4G-SATA2 Motherboard Quick Installation Guide
All ASRock 939NF4G-SATA2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
How many DDR DIMM slots does the motherboard have?
The board provides four 184‑pin DDR DIMM slots for dual‑channel memory.
From: ASRock 939NF4G-SATA2 Motherboard Quick Installation Guide
What SATA connectors are included on the board?
It includes two Serial ATAII 3.0 Gb/s connectors that support RAID 0, RAID 1 and JBOD.
From: ASRock 939NF4G-SATA2 Motherboard Quick Installation Guide
What type of CPU socket does the 939NF4G‑SATA2 use?
It uses a 939‑pin socket that supports AMD Athlon 64, 64FX, and 64X2 processors.
Can I set a BIOS supervisor password on this motherboard?
Yes, the Security Screen in the BIOS Setup Utility lets you set or change the supervisor password.
