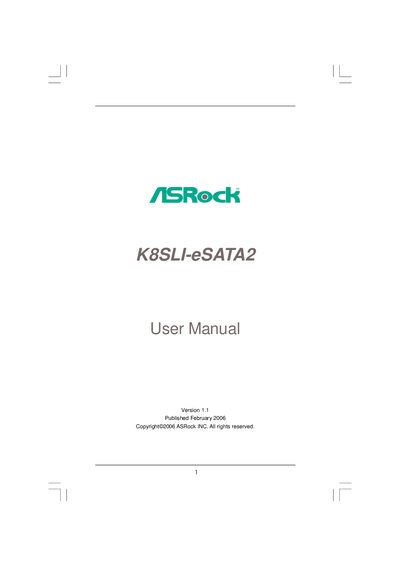

ASRock K8SLI-eSATA2 Motherboard User Manual

K8SLI-eSATA2 User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 729 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: K8SLI-ESATA2
MD5 checksum: 9DF49492F979554C809252779A784273
PDF: ASRock K8SLI-eSATA2 Motherboard User Manual PDF

About this manual

This manual introduces the ASRock K8SLI-eSATA2 motherboard, covering safety notices, package contents, and an overview of its features. It guides users through CPU, memory, and expansion slot installation, as well as SATA/eSATAII setup and BIOS configuration.

Additional sections detail software support, driver installation from the support CD, and an appendix on AMD’s Cool ‘n’ Quiet technology. The document also includes cautions, connector pin‑outs, and troubleshooting information for reliable system operation.

What's inside

Package Contents
Specifications
CPU Installation
Memory Module Installation
Expansion Slots
BIOS Setup Utility
eSATAII Interface Introduction
SATAII Hard Disk Setup Guide
Software Support
Appendix: AMD’s Cool ‘n’ Quiet Technology

Specifications

Form Factor	ATX (12.0‑in x 8.2‑in)
CPU Socket	754‑Pin socket supporting AMD Athlon™ 64 and Sempron processors
Memory Slots	2 DDR DIMM slots, DDR400/333/266, max 2 GB
Audio Codec	Realtek ALC660 5.1‑channel
LAN	Realtek PHY RTL8201CL, 10/100 Mbps Ethernet with Wake‑On‑LAN
USB Ports (Rear)	4 × USB 2.0 ports

Frequently asked questions

What operating systems are supported by the K8SLI‑eSATA2 motherboard?

It supports Microsoft Windows 2000, Windows XP, and Windows XP 64‑bit.

How many USB 2.0 ports are available on the rear panel?

There are four USB 2.0 ports on the rear I/O panel.

What is the maximum memory capacity of the board?

The board can hold up to 2 GB of DDR memory.

Does the motherboard support NVIDIA SLI technology?

Yes, the K8SLI‑eSATA2 supports NVIDIA SLI™.
