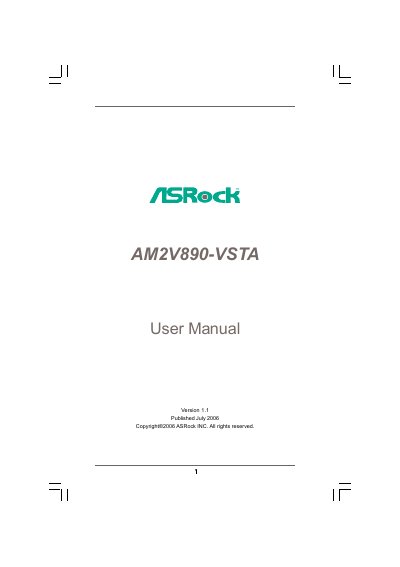

This manual introduces the function and use of the AM2V890-VSTA motherboard.
This manual introduces the ASRock AM2V890-VSTA motherboard, lists the package contents, and details the minimum hardware requirements for Windows Vista. It also describes the motherboard layout, connectors, and the HD 8‑channel I/O panel.
The guide walks through CPU, memory, and expansion slot installation, BIOS configuration options, and software support, including the support CD drivers and utilities. An appendix explains AMD’s Cool ‘n’ Quiet technology and other power‑saving features.
| Form Factor | ATX 12.0‑in x 8.0‑in |
|---|---|
| CPU Socket | AM2 940‑Pin |
| Supported CPUs | AMD Athlon 64 / 64FX / 64X2 and Sempron |
| Chipset | VIA K8T890 Northbridge, VIA 8237A Southbridge |
| Memory Slots | 4 DDRII DIMM slots, max 8 GB |
| Audio Codec | Realtek ALC888 7.1‑channel |
| LAN | VIA PHY VT6103, 10/100 Mbps Ethernet |
| BIOS | 4 Mb AMI BIOS |
| SATA Connectors | 2 x SATA 1.5 Gb/s, RAID 0/1/JBOD, Hot‑Plug |
It uses an AM2 940‑Pin socket for AMD processors.
Yes, the two SATA connectors support RAID 0, RAID 1, and JBOD, as well as hot‑plug.
The board ships with a 4 Mb AMI BIOS.
