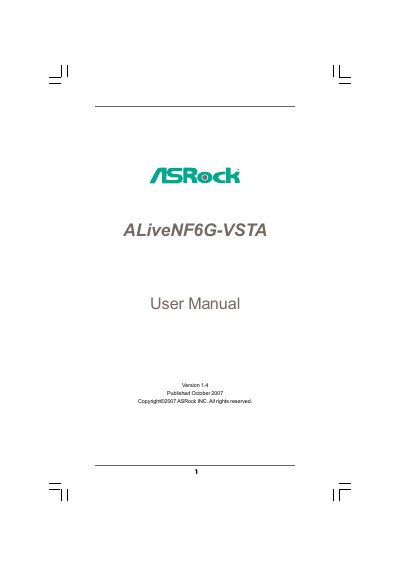

ALiveNF6G-VSTA User Manual
This manual guides users through installing the ALiveNF6G-VSTA motherboard, configuring BIOS settings, and using the supplied support CD. It also lists hardware requirements for Windows Vista Premium and Basic logos and includes safety cautions for over‑clocking and battery handling.
The document contains a full specifications table, detailed motherboard layout diagrams, and step‑by‑step procedures for CPU, memory, and peripheral installation, as well as troubleshooting tips and contact information for technical support.
| Form factor | Micro ATX (9.6 in × 9.6 in) |
|---|---|
| CPU socket | Socket AM2 for AMD Athlon 64FX / 64X2 / X2 / 64 and Sempron |
| Chipset | NVIDIA GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 |
| Supported memory types | DDRII 800/667/533 |
| Expansion slots | 2 × PCI, 1 × PCI‑Express x16, 1 × PCI‑Express x1, 1 × HDMR |
| Integrated graphics | NVIDIA GeForce6‑class, DX9.0, Pixel Shader 3.0, up to 256 MB shared memory |
| Audio codec | Realtek ALC888, 7.1‑channel HD Audio |
| LAN controller | Realtek PHY RTL8201CL, 10/100 Mbps |
It uses a Micro ATX form factor measuring 9.6 in × 9.6 in (24.4 cm × 24.4 cm).
It is based on the NVIDIA GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 chipset.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit, both with and without RAID functions.
