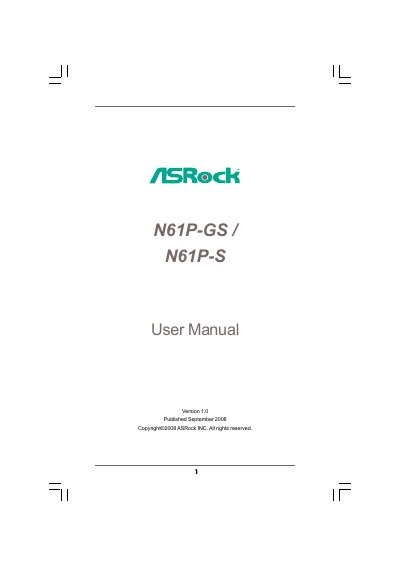

N61P-GS/N61P-S User Manual
This manual guides users through installing the ASRock N61P-GS / N61P-S Micro ATX motherboard, covering package contents, CPU and memory installation, expansion slots, and SATA/IDE connections. It also explains safety warnings, over‑clocking cautions, and how to use the support CD.
Later sections describe the BIOS Setup Utility, including boot configuration, security password settings, and hardware monitoring features. Software support information and contact details for ASRock are provided at the end of the document.
| Form Factor | Micro ATX (9.6" x 7.0") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Memory Slots | 2 DDR2 DIMM slots |
| Maximum Memory | 4 GB |
| Chipset | NVIDIA GeForce 6150SE / nForce 430 |
| LAN (GS model) | Realtek Giga PHY RTL8211CL‑GR, 10/100/1000 Mb/s |
| SATAII Connectors | 4 x Serial ATAII 3.0 Gb/s |
The motherboard supports Windows 2000, XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.
It provides four Serial ATAII 3.0 Gb/s connectors with RAID and hot‑plug support.
The board can accommodate up to 4 GB of DDR2 memory.
