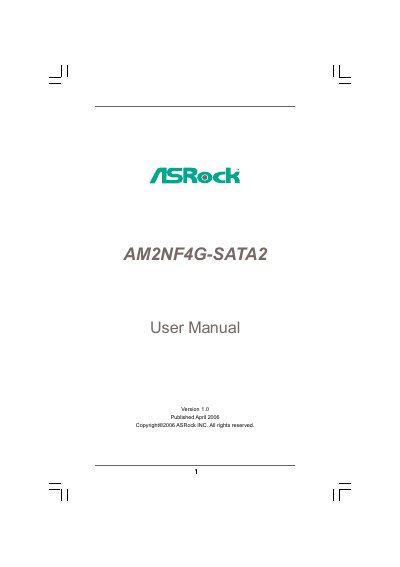

This manual provides information regarding ASRock AM2NF4G-SATA2 motherboard
This manual introduces the ASRock AM2NF4G‑SATA2 Micro‑ATX motherboard, its features, and the contents of the package. It guides users through hardware installation, BIOS setup, and software support, and includes safety cautions and warranty notices.
Key sections cover package contents, detailed specifications, step‑by‑step installation of CPU, memory, expansion cards, and SATA devices, BIOS setup utility screens, and information about the support CD, drivers, and utilities. An appendix explains AMD’s Cool ’n’ Quiet technology and other power‑saving options.
| Form Factor | Micro ATX 9.6 in × 9.6 in |
|---|---|
| CPU Socket | AM2 940‑Pin |
| Supported CPUs | AMD Athlon 64 / 64FX / 64X2 and Sempron |
| Memory Slots | 4 DDRII DIMM slots |
| Maximum Memory | 8 GB |
| Northbridge Chipset | nVidia GeForce 6100 |
| Southbridge Chipset | nVidia nForce 410 MCP |
| Audio Codec | Realtek ALC888 7.1‑channel |
| LAN Controller | Realtek RTL8201CL |
| SATAII Connectors | 2 (RAID 0, RAID 1, JBOD, Hot‑Plug) |
The board provides four DDRII DIMM slots.
It uses a 4 Mb AMI BIOS.
Yes, the SATAII connectors support RAID 0, RAID 1, and JBOD.
It is a Micro ATX board measuring 9.6 in × 9.6 in.
