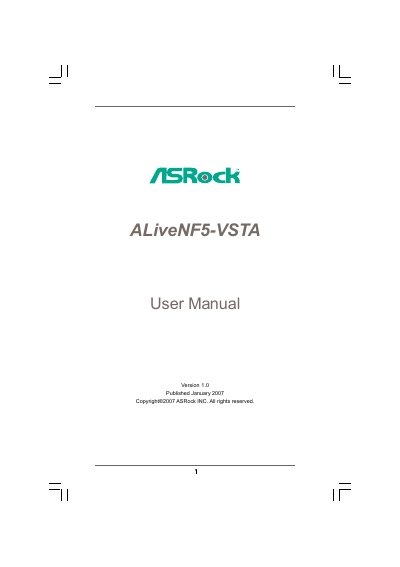

This document is the user manual for ALiveNF5-VSTA motherboard, describing the features and characteristics of the motherboard.
This manual introduces the ASRock ALiveNF5-VSTA motherboard, lists the package contents, and details the hardware specifications, including CPU socket, memory support, and expansion slots. It also covers installation procedures for the CPU, memory modules, and other components, as well as BIOS configuration and overclocking warnings.
Additional sections describe software support, driver installation from the support CD, and an appendix on AMD’s Cool ‘n’ Quiet technology. The document includes safety notices, FCC compliance information, and contact details for ASRock.
| Form Factor | ATX (12.0 in x 7.6 in) |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX / 64X2 / 64 and Sempron |
| Chipset | NVIDIA nForce 520 |
| Memory Slots | 4 x DDRII DIMM slots, max 8 GB |
| Supported Memory Types | DDRII 800/667/533 |
| Expansion Slots | 3 x PCI, 1 x PCI‑Express x16, 2 x PCI‑Express x1 |
| Audio Codec | Realtek ALC888, 7.1‑channel HD audio |
| LAN Controller | Realtek PHY RTL8201CL, 10/100 Ethernet |
| SATA Connectors | 4 x SATAII 3.0 Gb/s (RAID support) |
It is an ATX board measuring 12.0 in × 7.6 in (30.5 cm × 19.3 cm).
It uses Socket AM2 for AMD Athlon 64FX/64X2/64 and Sempron processors.
A Realtek RTL8201CL PHY providing 10/100 Mbps Ethernet connectivity.
