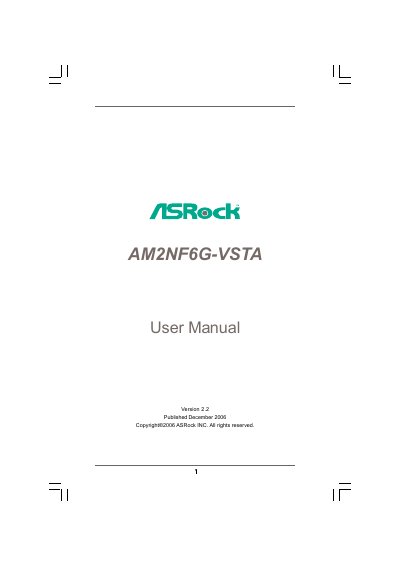

This manual provides detailed information about the AM2NF6G-VSTA motherboard, including specifications, installation instructions, configuration, troubleshooting, and other information.
This manual introduces the ASRock AM2NF6G-VSTA motherboard, a Micro ATX board designed for AMD AM2 processors. It includes a package list, detailed specifications, and safety notices.
The guide covers hardware installation (CPU, memory, expansion slots, SATA, and connectors), BIOS configuration, Windows operating system installation, and software support via the included Support CD. It also explains overclocking technology, power‑saving features, and security settings.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX/64X2/64 and Sempron |
| Chipset | NVIDIA GeForce 6100 / nForce 405 |
| Memory Slots | 4 DDRII DIMM slots, up to 8 GB |
| Maximum Memory Capacity | 8 GB |
| Integrated Graphics | NVIDIA GeForce6‑class DX9.0 VGA, up to 256 MB shared |
| LAN | Realtek PHY RTL8201CL, 10/100 Mbps |
| USB Ports | 4 USB 2.0 ports (ready‑to‑use) |
| SATA Connectors | 2 Serial ATAII 3.0 Gb/s connectors (RAID, Hot Plug) |
The motherboard provides four DDRII DIMM slots and supports up to 8 GB of memory.
