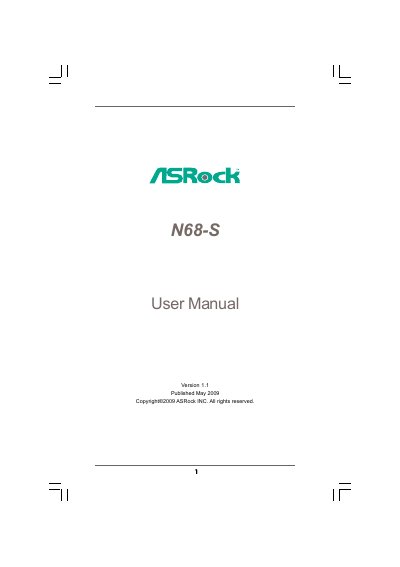

ASRock N68-S User Manual, mainly introduces the function characteristics, use instructions and other products
This manual introduces the ASRock N68-S motherboard, its features, and the components included in the package. It guides users through hardware installation, including CPU, memory, expansion cards, and SATA devices, and explains BIOS setup and overclocking options.
Further sections cover software support, driver installation, and troubleshooting, along with detailed diagrams of the motherboard layout, rear I/O panel, and connector pinouts. Safety warnings and regulatory compliance information are also provided.
| Form Factor | Micro ATX (9.6" x 7.0") |
|---|---|
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Expansion Slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI |
| Integrated Graphics | NVIDIA GeForce 7025 |
| Audio | 5.1‑channel HD Audio (VIA VT1708S/VT1705) |
| LAN | Realtek RTL8201EL/8201CL, 10/100 Mbps |
| Rear I/O Ports | PS/2 mouse & keyboard, Serial, VGA, 4 × USB 2.0, RJ‑45, Audio jacks |
It provides four SATAII connectors that support RAID and hot‑plug functions.
The motherboard can accommodate up to 8 GB of DDR2 memory.
Yes, it features integrated NVIDIA GeForce 7025 graphics.
