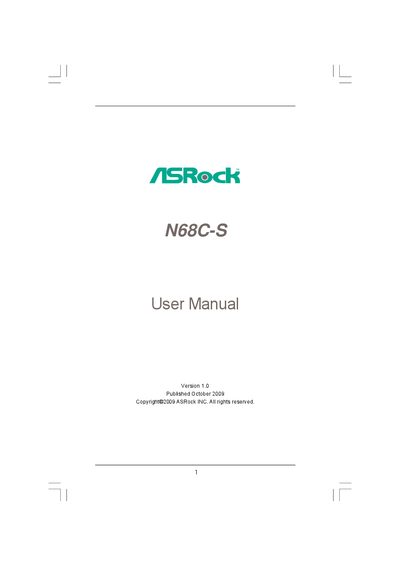

N68C-S User Manual
This manual introduces the ASRock N68C-S motherboard, a Micro ATX board with support for AMD AM2+, AM2 and AM3 processors. It includes safety notices, FCC compliance, and warranty information.
The guide covers package contents, detailed hardware installation (CPU, memory, expansion slots, SATA, USB), BIOS setup utility, operating‑system compatibility, and the support CD with drivers and utilities. It also lists technical specifications and troubleshooting tips.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 and AM3 |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Memory Slots | 2x DDR3 DIMM, 2x DDR2 DIMM |
| Maximum Memory | 8 GB |
| Expansion Slots | 1x PCI‑Express x16, 1x PCI‑Express x1, 2x PCI |
| Integrated Graphics | NVIDIA GeForce 7025 |
| Audio Codec | VIA VT1705 |
| LAN | Realtek RTL8201 EL, 10/100 Ethernet |
| USB Ports (Rear) | 4 x USB 2.0 |
The motherboard supports Microsoft Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, Windows XP and Windows XP 64‑bit.
The board can hold up to 8 GB of system memory.
There are four USB 2.0 ports on the rear I/O panel.
