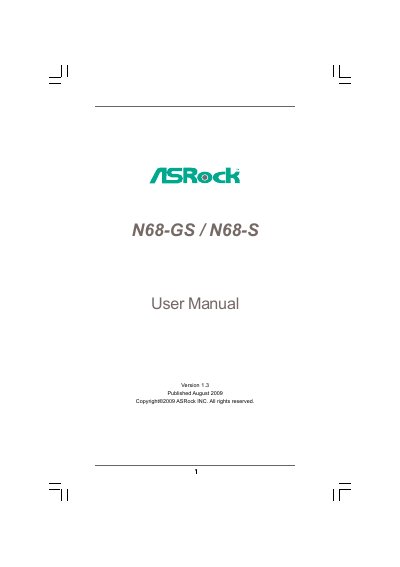

ASRock N68-GS/N68-S Motherboard User Manual

N68-GS / N68-S User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 50
File format: PDF
File size: 726 KB
Published: 15 March, 2012
Updated: 01 October, 2023
Models: N68-GS, N68-S
MD5 checksum: A3EF00FAC483AC48B2DD2C675308E402
PDF: ASRock N68-GS/N68-S Motherboard User Manual PDF

About this manual

This manual introduces the ASRock N68-GS/N68-S motherboard, covering its features, specifications, and hardware layout. It guides users through unpacking, component installation, and system configuration.

Detailed sections explain BIOS setup, driver installation, operating system support, and troubleshooting. The document also includes safety warnings, overclocking cautions, and contact information for technical assistance.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
BIOS Setup Utility
Software Support
Operating System Installation
Safety and Warranty

Specifications

Form Factor	Micro ATX (9.6‑in x 7.0‑in, 24.4 cm x 17.8 cm)
Chipset	NVIDIA GeForce 7025 / nForce 630a
Expansion Slots	1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI

Frequently asked questions

Which operating systems are supported by the N68‑GS/N68‑S motherboard?

It supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.

How many SATA II connectors does the motherboard provide?

The board includes four SATA II 3.0 Gb/s connectors with RAID and hot‑plug support.

What is the BIOS flash utility called?

The BIOS flash utility is named ASRock Instant Flash.
