RETON KVM 1708/1716 is a control platform that integrates multi-port KVM switching function in 1U height space. It realizes the operation of multiple computers through a set of devices (including LCD display, keyboard, and mouse).
The Reton KVM 1708/1716 is a 1U LCD KVM control platform that integrates video, keyboard, and mouse switching for multiple computers. It supports direct connection of 8 or 16 hosts and can cascade up to 128 PCs. The device features a built‑in LCD display, touch‑pad mouse, hot‑key switching, and automatic scanning of connected computers.

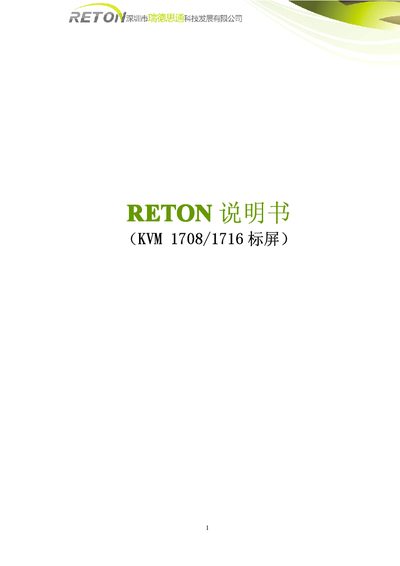

The manual provides safety precautions, installation steps, wiring diagrams, and detailed specifications such as dimensions, power consumption, operating temperature, and certifications. It also includes a brief company overview of Shenzhen Reton Technology Development Co., Ltd. This manual is written in Chinese.
| LCD display tilt angle | 120° |
|---|---|
| Supported resolution | 1280x1024@60Hz |
| Directly connectable PCs | 8/16 |
| Maximum cascaded PCs | 128 |
| Power consumption | 46 W |
| Operating temperature range | 0‑50 °C (storage 20‑60 °C) |
| Dimensions (L×W×H) | 602.5 mm × 448 mm × 42.5 mm |
| Weight (net/gross) | 15 kg / 23 kg |
The LCD display can tilt up to 120 degrees.
A single platform can directly connect 8 or 16 computers.
The recommended resolution is 1280 × 1024 at 60 Hz.
The unit consumes approximately 46 W of power.
