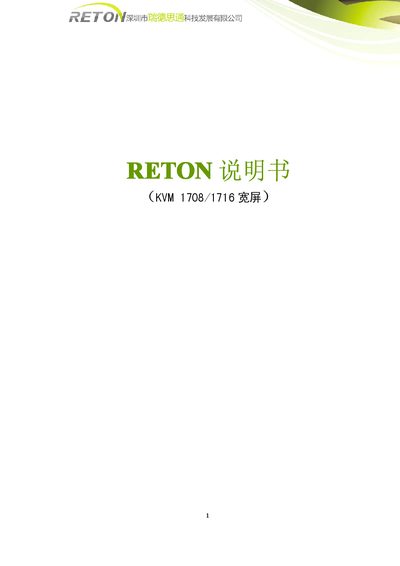

RETON KVM 1708/1716 LCD KVM Control Platform User Manual
This manual describes the RETON LCD KVM control platform, a 1U high‑density KVM switch that integrates an LCD monitor, keyboard, and mouse. It supports up to 128 PCs, offers multiple switching methods (hotkey, OSD menu, and port‑switch button), and includes features such as auto‑scan, LED port indicators, and built‑in security.
Installation is straightforward: connect the power source, attach the KVM cables, and mount the unit in a rack (depth 380 mm–850 mm). The document also lists environmental limits, power consumption (<36 W), and compliance with FCC, CE, and RoHS standards. This manual is written in Chinese.
RETON KVM 1708 specifications
| LCD display tilt angle | 120° |
|---|---|
| Supported resolution | 1280x1024@60Hz |
| Directly connectable PCs | 8/16 |
| Maximum cascaded PCs | 128 |
| Power consumption | 46 W |
| Operating temperature range | 0‑50 °C (storage 20‑60 °C) |
| Dimensions (L×W×H) | 602.5 mm × 448 mm × 42.5 mm |
| Weight (net/gross) | 15 kg / 23 kg |
All RETON KVM 1708 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum tilt angle of the LCD display?
The LCD display can tilt up to 120 degrees.
How many computers can be directly connected to a single LCD KVM control platform?
A single platform can directly connect 8 or 16 computers.
How many PCs can the RETON LCD KVM control platform manage?
It can control up to 128 PCs simultaneously.
From: RETON KVM 1708/1716 LCD KVM Control Platform User Manual
What are the physical dimensions of the KVM platform?
The unit measures 580 mm × 448 mm × 42.5 mm (W × D × H).
From: RETON KVM 1708/1716 LCD KVM Control Platform User Manual
