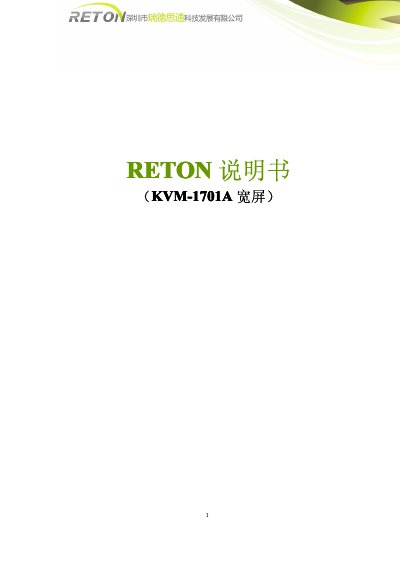

RETON KVM-1701A LCD KVM Control Platform User Manual

This document is the user manual for KVM-1701A control platform, which introduces the features and characteristics of the product.

Brand: RETON
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 16
File format: PDF
File size: 1.3 MB
Published: 14 March, 2012
Updated: 30 September, 2023
Model: KVM-1701A
MD5 checksum: 951ADC55828D7299AF47AE9AF48E7016
PDF: RETON KVM-1701A LCD KVM Control Platform User Manual PDF

About this manual

The RETON KVM-1701A is a 1U LCD KVM control platform that integrates a 17‑inch LCD display, keyboard and touch‑pad mouse into a single rack‑mountable unit. It supports multiple hardware platforms and operating systems, allowing direct control of a single host without additional software.

The manual provides safety notices, step‑by‑step installation, cable and power connections, operating instructions, technical specifications, mechanical dimensions, and troubleshooting guidance for the device. This manual is written in Chinese.

What's inside

Product Description
Safety Notices
Installation Guide
Cable Connection
Power Connection
Operating Instructions
Technical Specifications
Mechanical and Packaging
Company Introduction

Specifications

Resolution	1440 × 900 @ 60 Hz
Brightness	250 cd/m²
Maximum screen flip angle	120 °
AC input voltage	90 V ~ 264 V AC / 47 ~ 63 Hz
DC input voltage	36 V ~ 72 V DC
Operating temperature	0 ~ 50 ℃

Frequently asked questions

What resolution is recommended for the LCD screen?

The manual recommends setting the resolution to 1440 × 900 @ 60 Hz for the 17‑inch LCD.

How far can the LCD screen be flipped back?

The LCD display can be rotated up to a maximum angle of 120 degrees.
