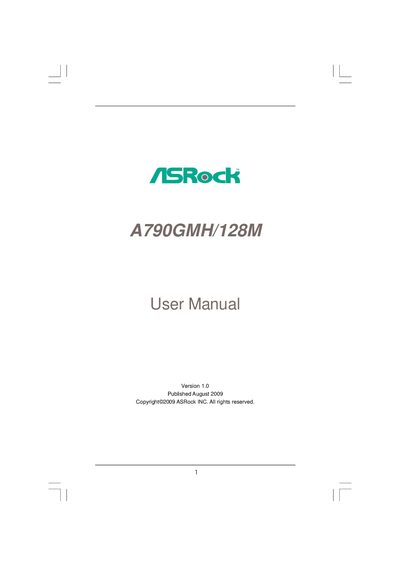

This document is a user manual for the A790GMH/128M motherboard by ASRock INC., providing information about the features and characteristics of the product.
This manual introduces the ASRock A790GMH/128M motherboard, its features, and the required hardware for optimal operation. It includes a detailed parts list, safety warnings, and an overview of supported CPUs, memory, and expansion slots.
The guide walks users through installation steps for the CPU, memory modules, and expansion cards, followed by BIOS configuration, driver installation, and troubleshooting tips. It also describes the support CD contents and provides contact information for technical assistance.
| Form Factor | Micro ATX |
|---|---|
| CPU Socket | Socket AM2+ / AM2 (supports AM3 CPUs) |
| Chipset | Northbridge AMD 790GX, Southbridge AMD SB750 |
| Memory Slots | 4 x DDR2 DIMM, up to 16 GB, 1066/800/667/533 MHz |
| LAN | Realtek RTL8111DL Gigabit Ethernet (10/100/1000 Mb/s) |
The board supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Windows Vista, Vista 64‑bit, and Windows 7.
There are four ready‑to‑use USB 2.0 ports on the rear I/O panel.
The motherboard can handle up to 16 GB of DDR2 memory.
