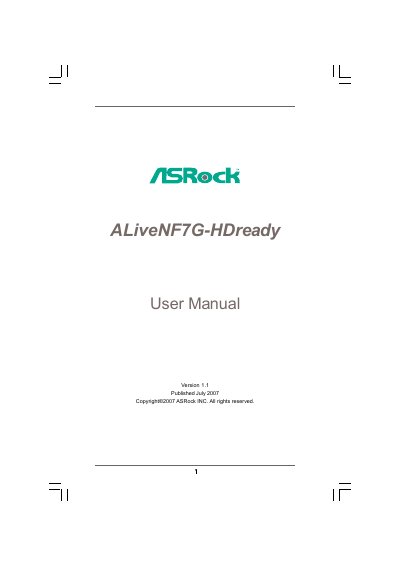

User Manual
The manual gives a complete overview of the ASRock ALiveNF7G‑HDready motherboard, including its package contents, key specifications, and supported features. It describes the form factor, CPU socket, chipset, memory, graphics, audio, networking, and I/O options.
Detailed sections cover hardware installation steps, BIOS configuration, minimum system requirements for Windows Vista Premium and 720p Blu‑ray playback, overclocking cautions, and software support via the included Support CD. The document also contains warranty, regulatory, and safety notices. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX/64X2/X2/64 and Sempron |
| Chipset | NVIDIA GeForce 7050 / nForce 630A MCP |
| Memory Slots | 4 DDRII DIMM slots, up to 8 GB, DDRII800/667/533 |
| Audio | 7.1‑channel HD audio (ALC888 codec) |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s (Realtek RTL8211B) |
| USB Ports | 4 rear USB 2.0 ports + 4 USB 2.0 headers (8 ports total) |
| SATA Connectors | 4 SATA‑II 3.0 Gb/s ports with RAID support |
| BIOS | 4 MB AMI BIOS |
