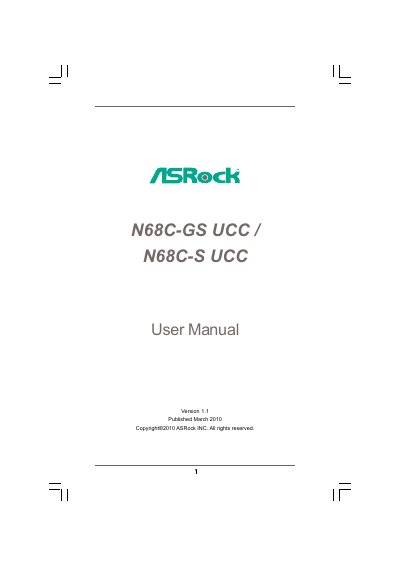

This document is the user manual for ASRock's N68C-GS UCC / N68C-S UCC motherboard, providing detailed specifications and features of the product, as well as instructions and precautions for use.
This manual introduces the ASRock N68C-GS/UCC and N68C-S UCC motherboards, describing their features, layout, and supported components. It guides users through hardware installation, BIOS configuration, and software support.
The document includes sections on CPU and memory installation, expansion slots, SATA and RAID setup, BIOS utility screens, and troubleshooting. A support CD with drivers and utilities is also described. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Socket | Socket AM2+, AM2, AM3 |
| Supported CPUs | AMD Phenom FX, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon X2, Athlon 64, Sempron |
| Memory | Dual‑Channel DDR3/DDR2, up to 8 GB |
| Graphics | Integrated NVIDIA GeForce 7025 |
| LAN | Realtek Giga PHY RTL8211CL (10/100/1000 Mb/s) on GS, RTL8201EL (10/100 Mb/s) on S |
| SATA | 4 × SATAII 3.0 Gb/s connectors, RAID 0/1/0+1/5/JBOD, hot‑plug |
They support AMD AM2+, AM2, and AM3 processors, including Phenom FX, Phenom, Athlon 64 FX, Athlon 64 X2, Athlon X2, Athlon 64, and Sempron CPUs.
Enable the BIOS option “Unlock CPU Core” to activate the extra CPU core and increase L3 cache size where supported.
The board has four SATAII 3.0 Gb/s connectors that support RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD and hot‑plug functions.
