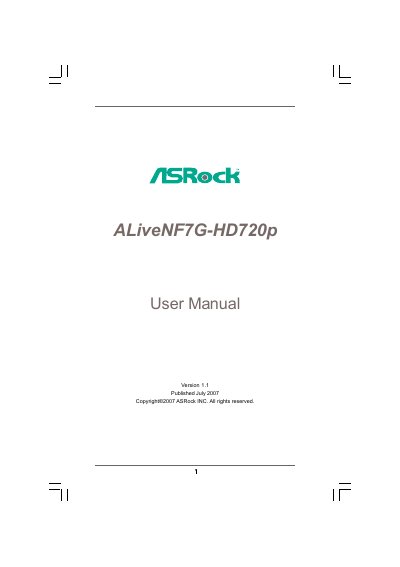

ASRock ALiveNF7G-HD720p User Manual

ASRock ALiveNF7G-HD720p User Manual, Version 1.1, Published July 2007

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 816 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: ALIVENF7G-HD720P
MD5 checksum: 1CF57500A9381D3A88F3C29C01BCCF11
PDF: ASRock ALiveNF7G-HD720p User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock ALiveNF7G‑HD720p motherboard, including package contents, hardware installation, BIOS configuration, and driver installation. It also lists the technical specifications, safety warnings, and compliance information.

The document includes detailed sections on minimum hardware requirements for Windows Vista Premium and 720p Blu‑ray playback, as well as troubleshooting tips and contact information for support.

What's inside

Introduction
Package Contents
Specifications
Minimum Hardware Requirements
Installation Guide
BIOS Setup Utility
Software Support
Hardware Health Monitoring

Specifications

Form Factor	Micro ATX (9.6‑in x 9.6‑in)
CPU Socket	Socket AM2 for AMD Athlon 64FX/64X2/64 and Sempron
Chipset	NVIDIA GeForce 7050 / nForce 630A MCP
Memory Slots	4 x DDRII DIMM, max 8 GB
Audio Codec	Realtek ALC888 (7.1‑channel)
LAN	Realtek PHY RTL8201CL, 10/100 Ethernet
SATA Connectors	4 x SATAII 3.0 Gb/s, RAID 0/1/0+1/5/JBOD

Frequently asked questions

Which operating systems are supported by this motherboard?

It supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, Vista and Vista 64‑bit.

How many SATA ports does the board provide and what RAID modes are supported?

The board provides four SATAII 3.0 Gb/s connectors and supports RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.
